Keysight Keysight (Agilent) 4155C Semiconductor Parameter Analyzer
| Nome da marca: | Keysight (Agilent) |
| Número do modelo: | 4155C |
| MOQ: | 1 CONJUNTO |
| Preço: | Negociável |
| Condições de pagamento: | T/T |
Keysight 4155C semiconductor analyzer
,Agilent semiconductor parameter tester
,electronic test measurement equipment

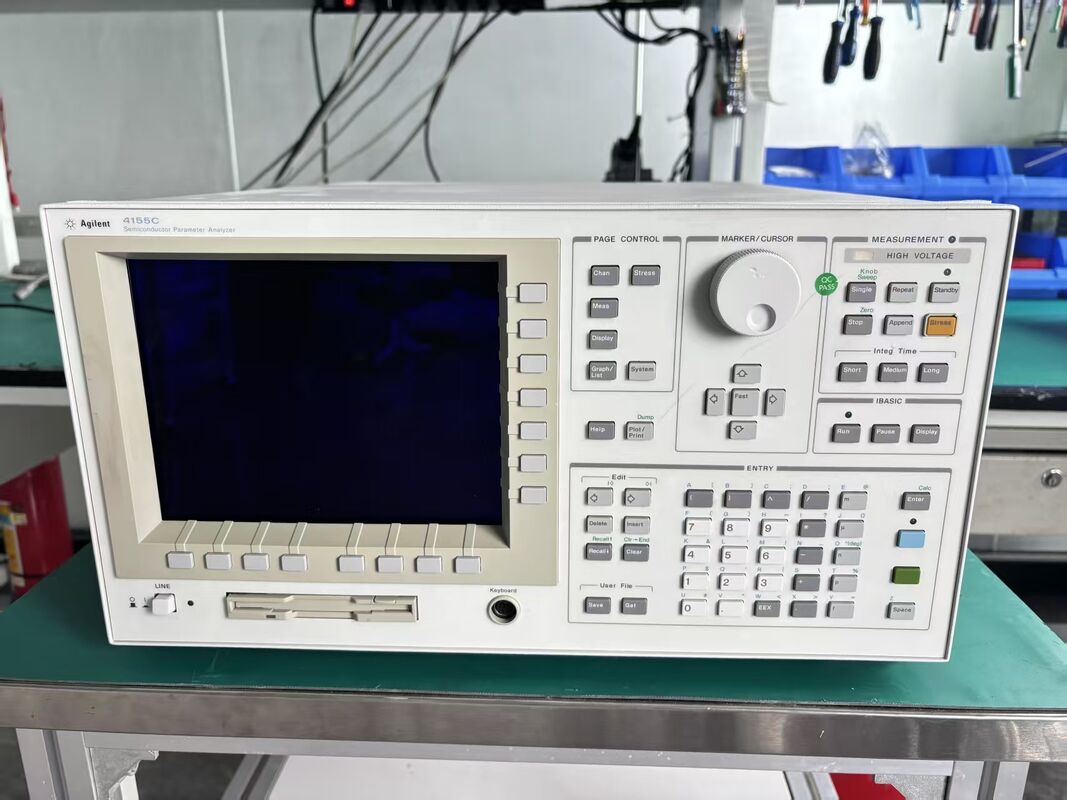

Keysight Keysight (Agilent) 4155C Semiconductor Parameter Analyzer
Description of 4155C
You can also control your 4155B/C or 4156B/C parameter analyzer from a PC with Desktop EasyEXPERT software. The new version of Agilent Desktop EasyEXPERT software, which is included with the 4155C/4156C, is able to control the Agilent 4155B/C and 4156B/C parameter analyzers too. To learn more please see the following document.
General Features
- Cost-effective, accurate laboratory bench top parameter analyzer
- 4x Medium-power SMU, 2xVSU and 2xVMU
- Fill-in-the blanks front panel operation
- Includes Desktop EasyEXPERT software for PC-based GUI instrument control
Measurement Capabilities
- 10 femtoamp and 0.2 microvolt measurement resolution
- QSCV, Stress Mode, Knob-sweep, and Stand-by functions
- +/- 200 Volts and +/- 1 Amp High-Power SMU, Pulse Generator capabilities available by optional 41501B
Desktop EasyEXPERT Software
- Intuitive, task-oriented approach to parametric test
- Furnished with over 80 pre-defined, user-modifiable application tests
- Automatically save data to hard disk drive or any networked drive
- Offline data analysis and application test development via Desktop EasyEXPERT software
List of Options
| 020 | Delete Windows Controller for Parametric Analysis and Characterization |
| 0KN | Self paced training |
| 200 | 1.5m interlock, 4x coaxial, 4x triaxial cables |
| 230 | 3.0m interlock, 4x coaxial, 4x triaxial cables |
| 41501B | Pulse Generator and Expander Unit for the 4155C/4156C |
| A6J | ANSI Z540 compliant calibration with test data |
| ABA | U.S. Quick Users Guide (English localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| L25 | Int opt I/CV 3.0 Parallel Security Key |
| L26 | Int opt I/CV 3.0 USB Security Key |
| L27 | Not 4155C-DIV 3.0 |
| L28 | Not 4155C-DIV 3.0 (Japanese Localize) |
| L90 | Int opt 100V TEST |
| L91 | Int opt 120V TEST |
| L92 | Int opt 220V TEST |
| L93 | Int opt 240V TEST |
| PAR | Parallel Security Key |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| UK6 | Commercial calibration with test results data |
| USB | USB Security Key |
Our service:
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
