gerador de sinal do rf
Created with Pixso. Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator

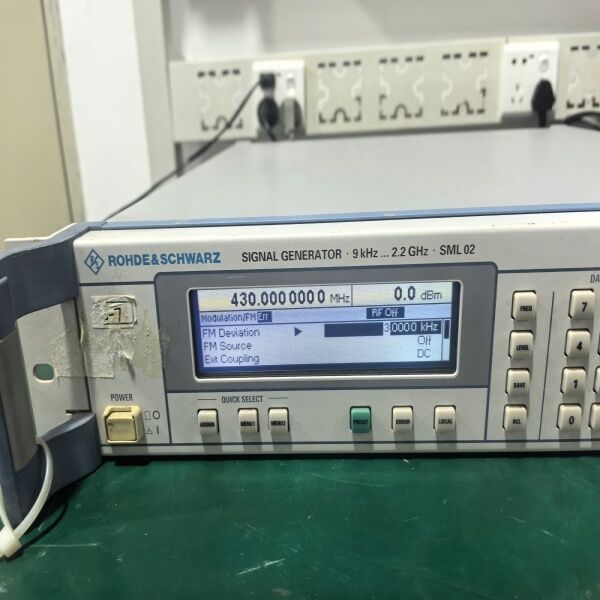

Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator

Nome da marca: Rohde And Schwarz
Número do modelo: SML02
MOQ: 1 conjunto
Preço: Negociável
Condições de pagamento: T/T
Informações pormenorizadas
Lugar de origem:
Alemanha
Certificação:
CE
Nível de saída do RF:
–144 dBm a +13 dBm, resolução de 0,1 dB
Resolução de frequência:
00,01 Hz
Mostrar:
LCD a cores
Largura de banda do RF:
Até 2,2 GHz
Distorção Harmônica:
-30dBc
Opções de Modulação:
até 1 GHz (opcional)
Canal:
Monocanal
Doença:
Pré-propriedade/novo
Escalas de frequência:
950 kHz a 2,025 GHz/4,050 GHz/6,075 GHz
Largura de banda da modulação:
240 megahertz
Precisão da amplitude:
±0,5 dB
Cobertura da frequência:
9 kHz a 2,2 GHz
Carga do utilizador:
50Ω
Detalhes da embalagem:
Caixa
Habilidade da fonte:
Em estoque
Destacar:

Rohde and Schwarz SML02 signal generator

,

RF signal generator 9kHz-2.2GHz

,

SML02 RF generator with warranty

Descrição do produto
Product Description


The Rohde SML02 is a 9 kHz to 2.2 GHz Signal Generator. The SML offers all features required of a state-of-the-art general-purpose signal generator: wide frequency range, large variety of modulation functions and high reliability -- at an extremely attractive price. The fields of application of SML are virtually unlimited in development, servicing or production where it is used as a flexible signal source in automatic test systems. SML benefits both from our long-standing experience in the field of signal generators and the latest technology. Its uses are as versatile as its functionalities.



Features:
  • 9kHz to 1.1GHz
  • SSB phase noise
  • Optional pulse modulator with integrated pulse generator
Performance Characteristics
  • Form Factor Benchtop
  • Minimum Frequency 9 kHz
  • Maximum Frequency 2.2 GHz
  • Frequency Resolution 0.1 Hz
  • External Frequency Reference 10 MHz
  • Minimum Output Power -140 dBm
  • Maximum Output Power 13 dBm
  • Power Resolution 0.1 dB
  • Output Level Switching Time 10 ms
  • Maximum Single-Side-Band Noise -122 dBc/Hz
  • Harmonics (noise) -30 dBc
  • Modulation AM,FM,Phase
  • Sweep Modes External,Log,Manual
Programmability/Connectivity
  • User Interface Not Applicable
Compliance
  • CE Compliance Compliant
  • UL Compliance Compliant
  • Safety Issue meets DIN EN 61010-1, IEC 1010-1,UL 3111-1, CSA 22.2 No. 1010-1
Power Requirements
  • Input Power 100 V to 120 V (AC), 50 Hz to 60 Hz,200 V to 240 V (AC), 50 Hz to 60 Hz,autoranging, max. 150 VA



List of Options



B10 HIGH POWER
B19 RF and AF Rear Connectors
B3 PULSE MODULATION
ZZA-211 19" ADAPTER,2HU,1/1 FOR BW2000 CABINETS


Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 0Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 1





Packaging & Shipping



We provide carton package and we also will make wooden carton if necessary.

Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 2Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 3Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 4

Our Services



One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
Company Information



Meigaolan is a test and measurement solutions and production suppliers, founded in 2003 and located in Shenzhen,China.


Our highly skilled Sale Representatives can assist you with all of your

new and refurbished test equipment needs, providing EMC test solutions

and building your Anechoic chamber.



Meigaolan have 6 branch offices,test and repair labs and stocks all round China(Shenzhen,Shanghai,Wuhan,Chengdu,Xi'an,Kushan). Viet Nam branch company established in 2023 to provide more close service to our customers.

Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 5Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 6Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 7Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 8Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator 9





FAQ



1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
